Liquid Fertilizer Buffer Tank

A liquid fertilizer buffer tank is the small but important vessel that keeps production and filling running at different speeds. It holds a working volume of finished or intermediate liquid, absorbs the difference between batch production and continuous packaging, and protects downstream pumps and filling machines from level swings and air ingestion.

LANE Machinery supplies stainless steel buffer tanks from 500 L to 30,000 L in SS304 or SS316L, with level control, venting, bottom discharge, recirculation, and optional slow-speed agitation, insulation, heating, and CIP. The tank can be supplied as a single unit or integrated into a complete liquid fertilizer production and filling line.

Product Overview

The LANE liquid fertilizer buffer tank is a welded stainless steel vessel designed for process buffering rather than long-term storage. It sits between production units or between a storage tank and a filling machine, where it maintains a stable working level and a steady supply of product.

The tank body is fabricated from stainless steel with polished internal surfaces and fittings matched to the product. SS304 is suitable for many water-soluble and organic liquid fertilizers. SS316L is recommended for products with chloride ions, phosphoric acid, organic acids, or aggressive micronutrient chemistry.

Every buffer tank is customized by capacity, configuration, instrumentation, and optional accessories so it matches the plant layout and the downstream machine it feeds.

Features and Advantages

Corrosion-resistant stainless steel construction

• Wetted parts are available in SS304 or SS316L stainless steel.
• SS316L provides better resistance to chloride ions, acids, and aggressive fertilizer chemistry.
• Internal and external surfaces are polished to prevent buildup and simplify cleaning.
• Material certificates can be provided for traceability and third-party inspection.

Stable working level control

• Sight glass, level gauge, or level transmitter options.
• High-level and low-level alarms protect the filling machine from overflow and air ingestion.
• Load cell option for gravimetric inventory and process integration.
• PLC integration allows the buffer tank to communicate with upstream and downstream equipment.

Continuous product supply

• Bottom discharge design maintains a consistent supply to pumps and filling nozzles.
• Recirculation pump option keeps suspension fertilizers uniform.
• Optional slow-speed agitator prevents settling and stratification.
• Designed to smooth batch-to-batch variation without mixing separate formulas.

Venting and overflow protection

• Atmospheric vent prevents pressure buildup during filling and draining.
• Overflow connection and level protection reduce spill risk.
• Foundation and anchoring reviewed for the installation site.

Insulation and temperature options

• Polyurethane or mineral wool insulation with external cladding.
• Electric trace, hot water, or steam coil options for temperature-sensitive products.
• Temperature sensors and alarms protect products with salting-out or viscosity risk.

Cleanable and maintainable design

• Manway, inspection opening, and bottom drain as standard.
• Optional CIP spray ball for cleaning between formulas.
• Smooth internal surfaces reduce residue and cross-contamination.
• Five-year warranty and spare parts support.

Working Principle

A buffer tank does not process the product. It controls the flow between process steps.

A typical buffering cycle works as follows:

1. Liquid fertilizer is pumped into the tank from the reactor, mixing tank, or storage tank at the upstream process rate.
2. The level system tracks the working volume and controls the upstream feed pump.
3. The filling machine or downstream pump draws product from the bottom outlet at its own speed.
4. The tank maintains a minimum working level so the suction line does not draw air.
5. For suspension products, a recirculation loop or slow-speed agitator keeps solids distributed.
6. When the batch is complete, the tank is drained and cleaned through the bottom outlet or CIP system.

Because the tank decouples the upstream batch cycle from the downstream packaging cycle, a short upstream delay does not stop the filling line, and a filling line pause does not force the reactor to stop.

Application in a Liquid Fertilizer Production Line

The buffer tank is the final process link before filling and packaging:

Mixing tank -> Reactor or fermentation tank -> Filtration -> Storage tank -> Buffer tank -> Filling machine -> Capping -> Labeling -> Inkjet coding -> Palletizing

In this configuration:

• The buffer tank holds a stable supply of liquid for the filling machine.
• It absorbs the time difference between batch production and continuous packaging.
• It gives the quality control team a working volume for final checks before filling.
• It prevents air, pressure swings, and level changes from affecting fill accuracy.

LANE supplies the buffer tank as a single machine or as part of a complete liquid fertilizer production line with mixing, reaction, filtration, storage, filling, labeling, and coding systems.

Application Scope

• Water-soluble NPK fertilizers and mother liquors.
• Foliar fertilizers and fertigation concentrates.
• Liquid NPK blends for drip and sprinkler irrigation.
• Suspension fertilizers requiring recirculation or slow agitation.
• Organic liquid fertilizers and biofertilizer blends.
• Chelated micronutrient solutions.
• UAN, APP, and other concentrated fertilizer liquids.

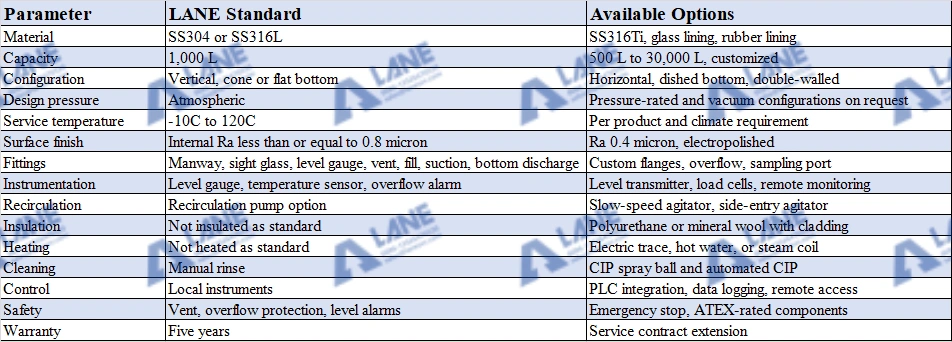

Technical Specifications

Quality, Standards, and Certification

LANE fabricates liquid fertilizer buffer tanks under an ISO 9001 quality management system and can supply CE-certified equipment with material certificates, welding records, and hydrostatic test reports.

For projects that require code-certified vessels, design and fabrication can follow customer-specified standards including ASME Section VIII, PED, GB/T 150, or EN 13445. The applicable standard depends on service pressure, capacity, and destination market, and LANE confirms the scope before fabrication.

For liquid fertilizer products exported to the European Union, the final product must meet Regulation (EU) 2019/1009. LANE’s tank and line design support clean changeover, contaminant control, batch traceability, and labeling, and we recommend independent certification of the final product by the relevant authority.

Why Choose LANE Machinery

Henan Lane Heavy Industry Machinery Technology Co., Ltd. is a fertilizer equipment manufacturer with more than 20 years of engineering experience. LANE has delivered equipment and production lines to clients in more than 50 countries and supplied machines for a 100,000 tons per year national fertilizer project in Africa.

LANE provides one-stop service from tank sizing and material selection to overseas installation, commissioning, operator training, remote video guidance, and after-sales support. The same engineering team designs the buffer tank, storage tank, mixing tank, reactor, filling machine, and complete liquid fertilizer line, which simplifies integration and protects product quality across the plant.

Frequently Asked Questions

What is the difference between a buffer tank and a storage tank?

A storage tank holds product for inventory or long-term storage. A buffer tank holds a smaller working volume to smooth the flow between process steps and keep downstream machines supplied. A plant normally has both: storage tanks for capacity and buffer tanks for continuity.

Why does a filling line need a buffer tank?

A filling machine needs a stable supply at a consistent level and pressure. The buffer tank prevents air from entering the suction line, absorbs the difference between batch production and packaging speed, and allows the line to keep running during a short upstream delay.

Can a buffer tank keep suspension fertilizer from settling?

Yes. LANE can add a recirculation pump loop or a slow-speed agitator to keep suspended solids evenly distributed. The tank bottom is designed to minimize dead zones.

Which stainless steel grade should I use?

SS304 is suitable for many water-soluble and organic liquid fertilizers. SS316L is recommended for products with chloride ions, phosphoric acid, organic acids, or aggressive micronutrient chemistry.

Do I need insulation or heating on a buffer tank?

Insulation and heating are recommended when the product can crystallize, thicken, or separate at low temperature. LANE reviews your product and climate before recommending a configuration.

Can the buffer tank be connected to the PLC?

Yes. Level, temperature, and pump controls can be integrated with the plant PLC, and the buffer tank can communicate with the filling machine, upstream pumps, and CIP system.

What is the warranty?

LANE provides a five-year warranty, spare parts support, and overseas installation and commissioning services.

Get a Quote for Your Liquid Fertilizer Buffer Tank

Send LANE your product type, buffer volume, filling speed, plant layout, and automation requirements. Our engineering team will recommend the tank configuration, material grade, instrumentation, and line integration, then provide a technical data sheet and quotation.
