Horizontal Fertilizer Mixer

Product Overview

The Horizontal Fertilizer Mixer is a high-efficiency industrial mixing machine designed for the uniform blending of organic and compound fertilizer raw materials. Featuring a horizontal drum structure with high-speed rotating mixing paddles, this machine delivers consistent mixing results across a wide range of material types, moisture levels, and particle sizes.

Whether you are producing organic fertilizer from animal manure, NPK compound fertilizer from chemical materials, or bio-organic blends, the horizontal mixer ensures that every batch achieves the homogeneity required for downstream granulation and final product quality.

Engineered for continuous, heavy-duty operation, this mixer is the workhorse of modern fertilizer production lines worldwide — trusted by 500+ plants across 50+ countries.

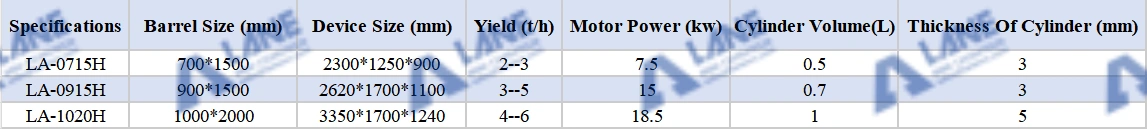

Technical Specifications

💡 Customization available: Capacity, material (304/316L stainless steel), and motor brand can be tailored to your requirements.

Key Features

⚡ High Mixing Efficiency

• Double-helix ribbon mixing paddles ensure 360° material turnover
• Achieves ≥95% homogeneity within 3-5 minutes per batch
• Suitable for materials with moisture content up to 30%

🛡️ Robust Construction

• Heavy-duty carbon steel body with anti-corrosion coating
• Optional full stainless steel (304/316L) for corrosive materials
• German-brand gearbox (SEW / Nord) for long service life

🔧 Easy Operation & Maintenance

• Side discharge door with pneumatic/hydraulic control
• Quick-open inspection hatch for easy cleaning
• Minimal wear parts — low maintenance cost

📐 Compact Footprint

• Horizontal layout saves vertical space
• Easy integration into existing production lines
• Flexible inlet/outlet configuration to match your plant layout

🌍 Versatile Material Compatibility

• Organic materials: animal manure, crop straw, mushroom residue, sludge
• Compound materials: urea, DAP, MOP, ammonium sulfate, bentonite
• Additives: microbial agents, trace elements, anti-caking agents

Working Principle

Raw Material A ──┐
Raw Material B ──┼──→ Feed Hopper ──→ Horizontal Mixing Drum
Raw Material C ──┘                         │
                                           │ Rotating Paddles
                                           │ (35-45 rpm)
                                           ↓
                              Uniform Mixture ──→ Discharge Door ──→ Next Process
                                                                    (Granulation / Packaging)

1. Feeding: Raw materials are fed into the hopper via conveyor belt or manual loading
2. Mixing: The motor drives the main shaft, rotating the ribbon-style mixing paddles inside the horizontal drum. Materials are lifted, tumbled, and circulated in both axial and radial directions, creating a 3D mixing effect
3. Discharging: After the preset mixing time (3-6 minutes), the pneumatic discharge door opens, and the homogeneous mixture is discharged into the next process (granulator or packaging machine)

The key advantage of the horizontal design is the convective mixing pattern — materials move continuously along the drum axis while being lifted and cascaded, preventing dead zones and ensuring every particle contacts every other particle.

Applications

Why Choose Fertilizer Industry Leader?

Frequently Asked Questions

Q1: What is the maximum moisture content this mixer can handle?

A: The horizontal mixer effectively handles materials with up to 30% moisture content. For materials above 30%, we recommend pre-drying or combining with a dryer.

Q2: Can I get a stainless steel version?

A: Yes. We offer full 304 or 316L stainless steel construction for highly corrosive materials or food-grade requirements.

Q3: What is the typical mixing time per batch?

A: 3-5 minutes for standard organic/compound materials. Highly viscous or fibrous materials may require 5-8 minutes.

Q4: Do you provide installation and commissioning support?

A: Yes. We provide detailed installation manuals, CAD layout drawings, and can dispatch our engineers for on-site installation and training (additional service).

Q5: What is the warranty period?

A: 12 months from the date of shipment for the main machine body. Wear parts (paddles, bearings, seals) are excluded but available at cost.

Get Your Custom Quote

Ready to add a Horizontal Fertilizer Mixer to your production line? Contact our engineering team for a tailored solution
