Vertical Crusher for crushing organic fertilizer materials and compound fertilizer raw materials. Processes compost, livestock manure, fertilizer blocks, and mineral materials into uniform particles. High crushing efficiency, low energy consumption, and ideal for fertilizer production lines.

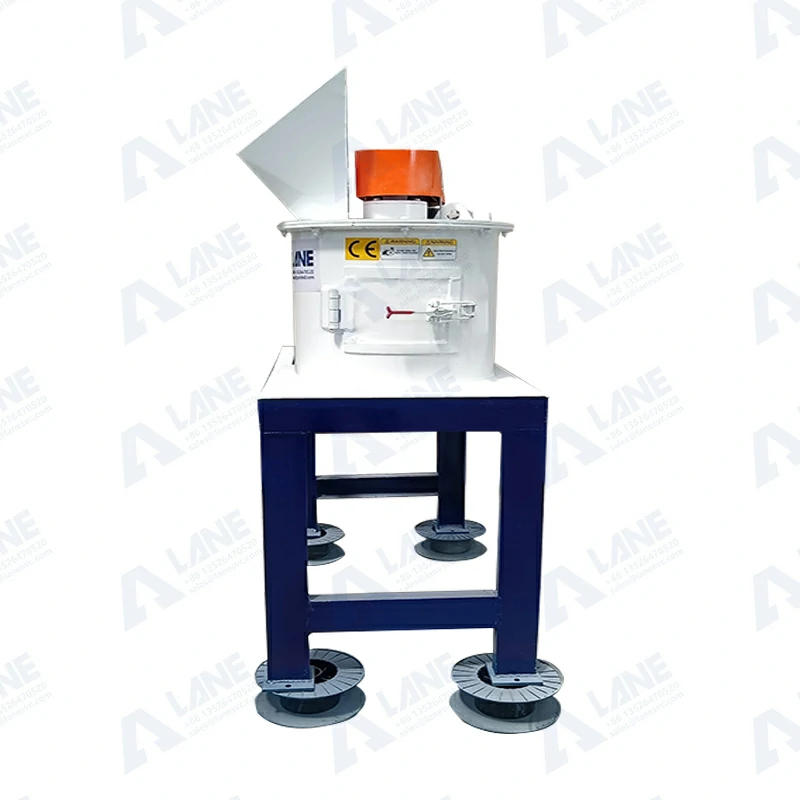

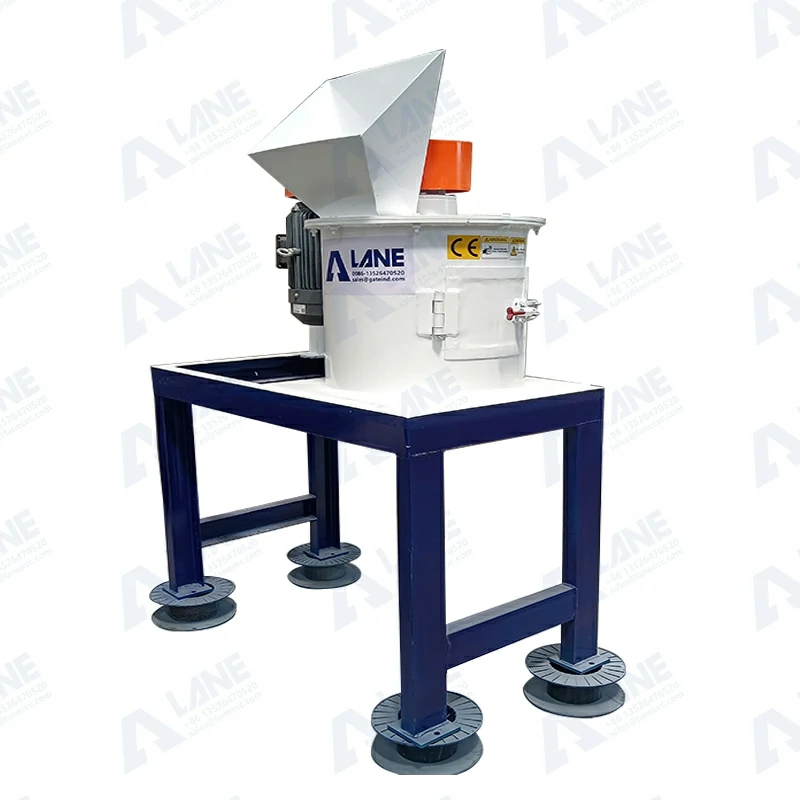

Caked fertilizer lumps, returned oversized granules, moderately wet raw materials — these are the daily headaches of a fertilizer production line. The LANE vertical crusher solves them with a simple design decision: no screen, no grate bottom. Material is crushed by high-speed impact inside a vertical chamber and falls straight through, so there is nothing to clog and nothing to burn out when moisture rises.
Email sales@lanesvc.com with your material and capacity — get a matched model and quotation within 24 hours.
Traditional crushers fail on damp material because their screens blind over. The vertical crusher’s open bottom discharge means material with moisture up to ~25% passes through continuously. Less downtime, no screen replacement costs.

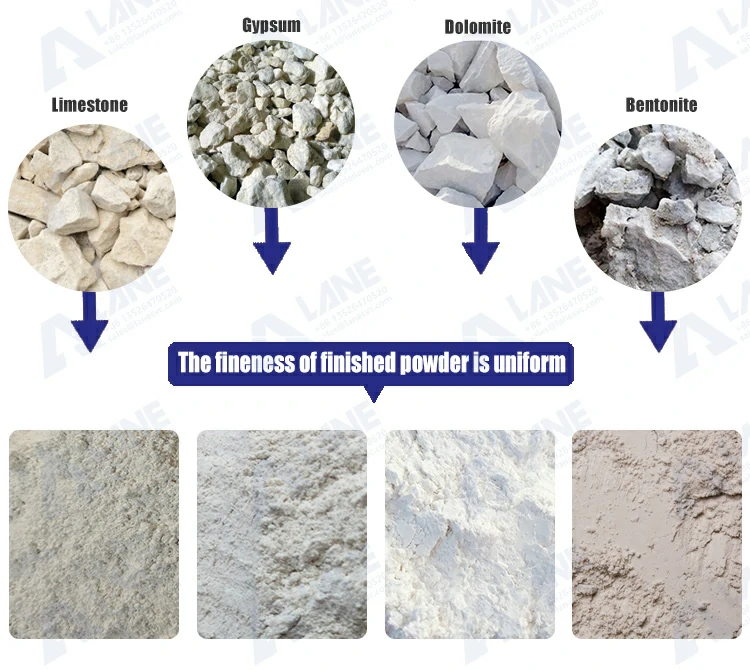

The impact-and-fall action breaks lumps to size and lets fines drop out immediately, instead of grinding everything into dust. You get usable particles, not powder loss.
In compound fertilizer production, off-spec oversized granules from the screening stage can be returned to the vertical crusher and re-processed — closing the loop and cutting raw material waste.
The vertical structure occupies far less floor space than horizontal crushers of the same capacity. It slots easily under an existing screening tower or between conveyors.
Chamber liners and hammers/chains use wear-resistant alloy. For corrosive fertilizer salts, the contact surfaces are treated for extended service life.
Because gravity does the discharging, throughput stays stable even as material moisture fluctuates through the day.
Motor standards configurable for 380V/415V/440V, 50/60Hz export requirements.
| Your Situation | Recommended Machine |
|---|---|
| Dry-to-slightly-damp fertilizer lumps, NPK caking | Chain Crusher |
| Moderately wet material, recycled oversize granules, tight floor space | Vertical Crusher (this page) |
| High-moisture organic material (25%–50%), manure & compost | Semi-Wet Material Crusher |
Still unsure? Email us your material type and moisture — we’ll recommend honestly, even if the answer is a cheaper machine.
Q: What’s the maximum moisture this machine can handle?
A: Around 25% as a rule of thumb. For wetter organic materials (manure, compost at 25%–50%), our semi-wet material crusher is the right tool — we’ll steer you to the correct machine based on your numbers.
Q: Does the open bottom mean uncontrolled particle size?
A: Output fineness is controlled by rotor speed and the hammer-to-liner clearance, typically achieving ≤3 mm. If you need a guaranteed top size, tell us your spec and we’ll confirm achievable results for your material.
Q: How often do wear parts need replacing?
A: Hammers and liners are consumables; lifetime depends on material abrasiveness. Both are bolt-on replaceable in under an hour, and spare sets ship with the machine.
Q: Can it run continuously in a 24/7 line?
A: Yes, it is designed for continuous duty within its rated capacity. We recommend routine inspection of wear parts per the manual.
Send us: (1) your material, (2) feed size and moisture, (3) required capacity. We’ll reply with the right model, technical drawing, and price.
Get Your Vertical Crusher Solution
