Wheel type compost turner applied for organic fertilizer windrow composting. It features adjustable capacity ranging from 400 to 5000 m³/h with high-efficiency rotating drum. CE certified composting equipment manufactured by LANE Machinery.
The wheel type compost turner is a robust, diesel-powered windrow composting machine that uses a large rotating drum equipped with flail blades or paddles to lift, shred, aerate, and reposition organic material. Mounted on a self-propelled chassis (wheeled or tracked), it straddles windrows and processes massive volumes of organic waste per hour — making it the workhorse of choice for medium-to-large-scale organic fertilizer production lines.
Developed and manufactured by Henan LANE Heavy Industry Machinery Technology Co., Ltd. (LANE Machinery), this wheel type compost turner delivers industrial-grade throughput (400–5,000 m³/h) with the reliability required for continuous multi-shift operation in commercial composting facilities.
Core value proposition: Industrial throughput with agricultural simplicity. One machine, one operator, one pass — complete windrow inversion, aeration, and reshaping at rates that keep pace with high-capacity fertilizer granulation lines.
1. High-Torque Rotating Drum — The Core Advantage
2. Massive Throughput Capacity
| Model Class | Drum Diameter | Capacity | Suitable Plant Scale |
|---|---|---|---|
| Compact (2,000 mm) | 580–600 mm | 400–500 m³/h | 3,000–5,000 TPY |
| Mid-Range (3,000 mm) | 800–1,000 mm | 1,000–1,500 m³/h | 10,000–20,000 TPY |
| Industrial (5,000 mm+) | 1,200–1,750 mm | 3,000–5,000 m³/h | 30,000+ TPY |
3. Superior Mixing Uniformity
4. Heavy-Duty Drivetrain for Continuous Duty
5. Flexible Chassis Options
6. Optional Auxiliary Systems
Windrow Formation: Organic material is stacked in elongated windrows matching the machine’s working width (2.0–6.4 m).

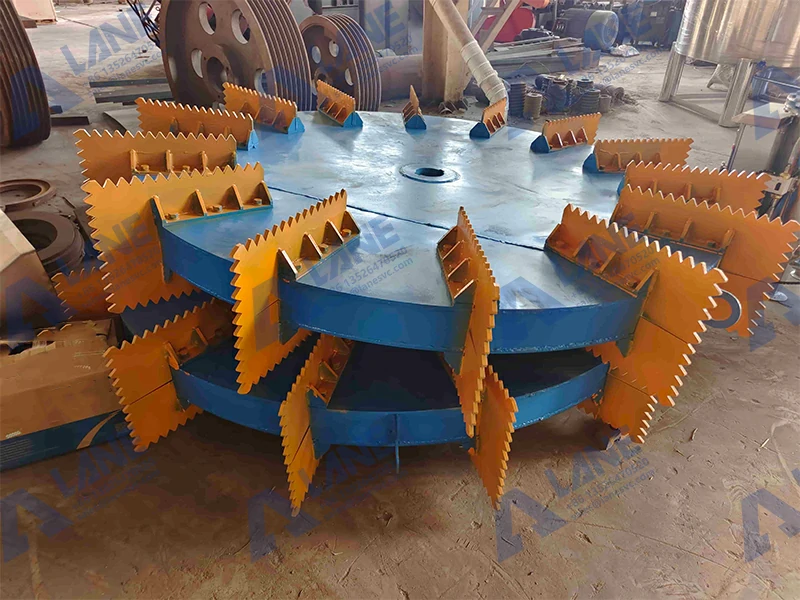

Drum Engagement: As the machine advances along the windrow, the rotating drum descends into the pile. Flail blades or paddles cut into the material from the face of the windrow.
Lift, Shred & Cast: The rapidly spinning drum lifts material from the pile base, shreds clumps and oversized particles, and casts the processed material over the machine — depositing it behind as a reformed windrow.
Complete Inversion: The drum’s aggressive action pulls material from the outer (cooler) edges toward the center while pushing the core (hot) material outward and upward. Every particle is repositioned in each pass.
Aeration & Temperature Spike: The violent turning action saturates the material with oxygen. Microbial metabolism surges, driving the new windrow core to 55–70°C within hours.
Rapid Cycling: With 1–2 passes per day, the full fermentation cycle completes in 7–15 days depending on material type, ambient conditions, and target maturity.
Custom engineering available for non-standard windrow dimensions, alternative power units, extreme-climate operation, and integrated auxiliary systems. Contact LANE Machinery for a project-specific specification.
| Category | Examples |
|---|---|
| Animal Manure | Cattle, chicken, pig, sheep, horse, poultry litter |
| Crop Residues | Corn stalks, wheat straw, rice straw, cotton stalks, sugarcane bagasse |
| Agro-Industrial Waste | Distiller’s grains, vinegar residue, sugar mill filter mud, coffee pulp, palm oil waste |
| Green Waste | Grass clippings, leaves, brush, tree trimmings |
| Municipal Organics | Source-separated food waste, yard waste, biosolids |
| Sludge | Municipal sewage sludge, industrial sludge, biogas digestate |
1. Commercial Organic Fertilizer Plants (10,000–100,000+ TPY)
The wheel type turner is the standard fermentation machine for mid-to-large organic fertilizer production lines. Its throughput aligns directly with industrial granulation, drying, and packaging equipment capacities.
2. Municipal Composting Facilities
High-capacity windrow composting of source-separated organics and yard waste. Meets regulatory requirements for pathogen reduction (PFRP) through consistent temperature attainment across the full windrow profile.
3. Large-Scale Livestock & Poultry Operations
Integrated manure management for operations with 5,000+ head of cattle or 500,000+ birds. Converts a waste disposal liability into a revenue-generating organic fertilizer product line.
4. Sugar Mills & Agro-Processing
Valorizes filter mud, bagasse, and processing residues into high-value compost for soil amendment markets.
5. Contract Composting & Soil Remediation
Mobile, high-throughput machines ideal for operators servicing multiple sites or processing contaminated soils through aerobic bioremediation.
As the fermentation-stage prime mover, the wheel type compost turner sets the throughput ceiling for the entire downstream line:
Wheel Type Turner (Fermentation) → Conveyor → Crusher → Screen → Mixer → Granulator (Disc/Drum/Ring Die) → Dryer → Cooler → Coater → Packing Machine
Its capacity (m³/h of turned compost) directly determines how many granulation lines can be fed simultaneously — making it the single most important capacity-planning decision in plant design.
| Factor | LANE Machinery | Industry Typical |
|---|---|---|
| Specialization | Dedicated fertilizer equipment engineering and manufacturing | General industrial machinery |
| Solution Scope | Complete turnkey — process design, layout, manufacturing, installation, training, after-sales | Equipment supply only |
| Customization Depth | Engineered to your raw material, site, capacity, and climate | Off-the-shelf standard models |
| Quality Assurance | Multi-stage inspection including factory acceptance testing | Basic pre-shipment visual check |
| After-Sales Support | On-site commissioning, operator training, ongoing technical support, spare parts supply | Limited post-delivery contact |
| International Track Record | Proven global export and commissioning across multiple continents | Domestic market focus |
| Certification | CE certified for EU and international markets | Inconsistent |
Q: Wheel type vs. crawler type — which one should I choose?
Wheel type turners use a rotating drum with flails for aggressive material shredding and complete windrow inversion. They are ideal for mid-to-large plants where throughput and mixing uniformity are top priorities. Crawler types use a spiral blade shaft and are simpler mechanically — better suited for operations prioritizing low maintenance over maximum throughput. Both are self-propelled; the choice comes down to capacity needs and material characteristics.
Q: What makes the drum/flail design better for large-scale composting?
The rotating drum design provides two key advantages at scale: (1) Complete inversion — every particle moves from the surface to the core and vice versa, ensuring uniform pasteurization; (2) Higher throughput per pass — the aggressive flail action processes more material per linear meter than spiral blade designs, keeping pace with high-capacity downstream lines.
Q: How long do the flail blades last?
Blade lifespan depends on material abrasiveness and operating hours. Standard manganese steel blades typically last 1,500–2,500 hours. Hardox-coated blades extend this to 3,000+ hours. Blades are individually replaceable — you swap worn blades, not the entire drum.
Q: Can it handle wet, sticky materials?
Yes. The flail design is specifically effective at breaking up wet, matted materials like fresh poultry litter or high-moisture sludge. For materials above 70% moisture, blending with dry bulking agents is recommended for optimal processing.
Q: How many turns per day does the windrow need?
Typically 1–2 turns per day during the active thermophilic phase (first 5–7 days). Frequency can decrease as the material enters the curing/maturation phase. The machine can process multiple windrows per day — one large industrial turner can manage 5–10 windrows in daily rotation.
Q: Is operator training provided?
Yes. LANE Machinery includes on-site operator training with every machine delivery. Our engineers train your team on safe operation, daily maintenance, troubleshooting, and optimal turning protocols for your specific materials.
LANE Machinery engineers complete organic fertilizer solutions — not just equipment. Let us design a system that matches your raw material, your capacity goals, and your budget.
