BB Fertilizer Mixer

Product Overview

The BB Fertilizer Mixer — also known as the Bulk Blending (BB) Mixer — is a specialized mixing system designed for the production of Bulk Blended (BB) fertilizer. BB fertilizer is made by physically mixing different granular fertilizer ingredients (such as urea, DAP, MOP, and TSP) in specific ratios to create custom NPK formulations tailored to specific crops, soil conditions, and regional agricultural needs.

Unlike other fertilizer mixers that process powders for downstream granulation, the BB mixer handles finished granular materials — its primary objective is achieving uniform distribution of different granule types without crushing, grinding, or degrading the individual particles.

This complete BB mixing system typically integrates multiple components: raw material storage bins, automatic batching/weighing, the mixer itself, and automatic bagging — forming a turnkey BB fertilizer production line.

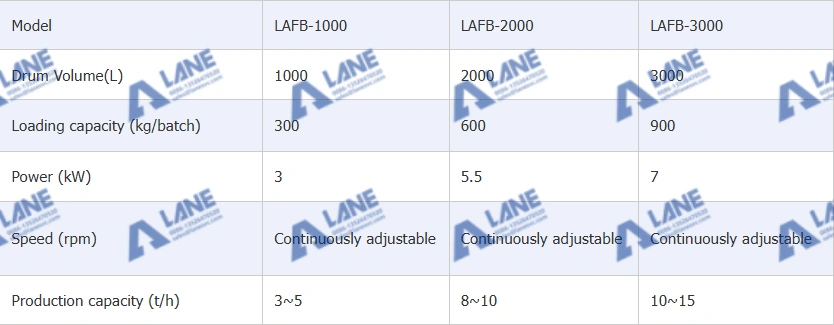

Technical Specifications

Complete BB Production Line Configuration

Key Features

🎯 Precision Batching Technology

• Digital load cell system with ±0.2% weighing accuracy per ingredient
• PLC with formula memory — store 50+ custom NPK recipes
• Automatic sequential feeding prevents cross-contamination between batches
• Real-time weight display and batch record printing

🌾 Gentle Granule Handling

• Specially designed wide-pitch ribbon paddles minimize particle friction
• Low-speed operation (20-30 rpm) prevents granule crushing
• <2% particle breakage rate — superior to standard mixers (5-8% breakage)
• Maintains SGN (Size Guide Number) distribution of finished product

🔄 Consistent Blend Quality

• ≥96% mixing uniformity verified by standard CV (Coefficient of Variation) testing
• Multi-stage mixing pattern: initial distribution → dispersion → random mixing → equilibrium
• Uniform nutrient distribution in every bag — no hot spots or segregation

🏭 Modular & Scalable Design

• Start with a basic 4-bin system and expand to 8 bins as your product line grows
• Mixer capacity from 5 T/H to 30 T/H — grows with your business
• Compatible with manual, semi-automatic, or fully automatic bagging systems

🛡️ Corrosion Protection

• All contact surfaces coated with anti-corrosion epoxy paint
• Optional stainless steel (304) for the mixing chamber when handling hygroscopic materials
• Sealed bearings to prevent dust ingress and fertilizer corrosion

Working Principle

1. Formula Input: The operator selects or enters the NPK formula on the PLC touchscreen (e.g., 15-15-15, 20-10-10, 12-24-12)
2. Automatic Batching: Each ingredient bin opens in sequence. The load cell measures the exact weight of each material as it’s loaded onto the weighing belt. Once the target weight is reached, the bin gate closes
3. Elevation: All batched materials are lifted by bucket elevator into the BB mixer
4. Gentle Blending: The mixer’s wide-pitch ribbon paddles rotate at low speed, gently folding granules together without crushing
5. Discharge & Pack: After the preset mixing time, the blended BB fertilizer is discharged into the buffer hopper and fed directly to the automatic bagging machine

What is BB Fertilizer?

BB (Bulk Blending) fertilizer is a physical mixture of granular fertilizer ingredients formulated to meet specific NPK ratios required by different crops and soils. Key characteristics:

Market trend: BB fertilizer is growing rapidly because it enables farmers to apply precisely the NPK ratio their soil tests recommend — rather than a one-size-fits-all compound fertilizer.

Applications

Why Choose Fertilizer Industry Leader?

Frequently Asked Questions

Q1: How many raw material bins do I need?

A: A basic system requires 4 bins (for N, P, K, and filler). We recommend 6-8 bins for operational flexibility — allowing you to stock multiple nitrogen sources (urea, ammonium sulfate), phosphorus sources (DAP, TSP), and potassium sources (MOP, SOP).

Q2: Can the BB mixer handle different granule sizes?

A: Yes. The BB mixer is designed to blend granules of different sizes (typically 2-5 mm) without segregation. However, for best results, we recommend raw material granules within a similar SGN (Size Guide Number) range to prevent post-mix segregation during transport.

Q3: What about anti-caking treatment?

A: We can integrate an automatic anti-caking agent dosing system that sprays a fine coating of anti-caking powder or liquid onto granules during the mixing process.

Q4: How accurate is the batching system?

A: ±0.2% of target weight per ingredient. For a 1000 kg batch, the dosing accuracy is ±2 kg per ingredient — well within industry standards for bulk blending.

Q5: Can you provide the NPK formulas?

A: We provide basic reference formulas. For region-specific agronomic recommendations, we can connect you with our agronomy partners or you can work with local soil testing laboratories.

Get Your Custom BB Fertilizer Line Quote

Ready to start your own BB fertilizer blending business? We deliver complete turnkey solutions — from design to commissioning:

Tell us your target capacity and desired NPK formulations — we’ll design a complete BB blending line and send a detailed proposal within 24 hours.
